Nex Flow™ Nozzles are designed to fit into small spaces. We have an adjustable Nozzle for some applications and then a few different Nozzles with varying force, depending on the application. All Nex Flow Air Nozzles meet OSHA standard CFR 1910.242(b) for dead end pressure. Noise levels are dramatically lower with air nozzles in addition to lower energy use.
Air Nozzle Model :

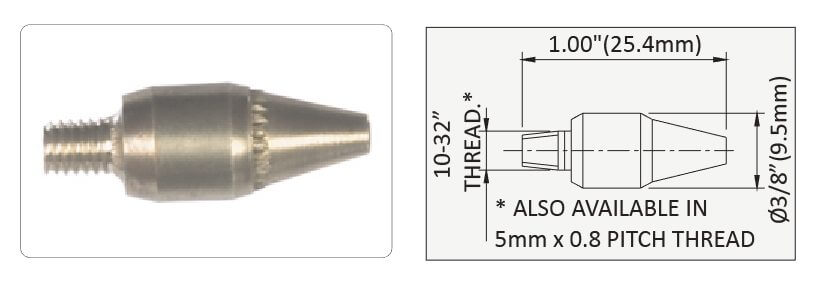

Model 47001 Air Nozzles– is a small brass nozzle to fit into small spots and used by many machine builders for blow-off applications. Micro Air Nozzle – The Model 49001 Nex Flow™ brass nozzle is a Micro Air Nozzle for blowoff.

Sound level 74 dBA at 3ft (0.91mm) at 80 psig (5.6 bar).

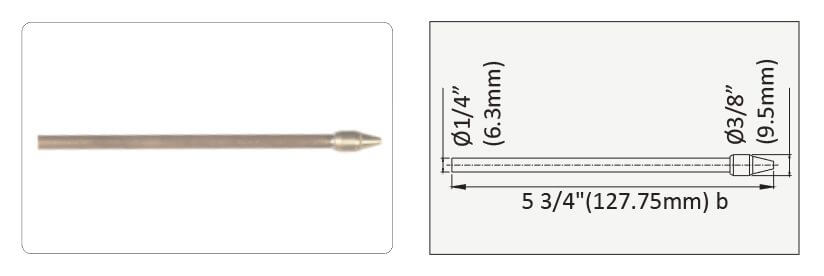

Model 47002 Air Nozzles is the brass nozzle added to a copper tube. Machine builders can bend the copper tube and aim the nozzles to where ever it suits. The copper tube is simply press fit into the customer’s system.

Sound level 74 dBA at 3ft (0.91mm) at 80 psig (5.6 bar).

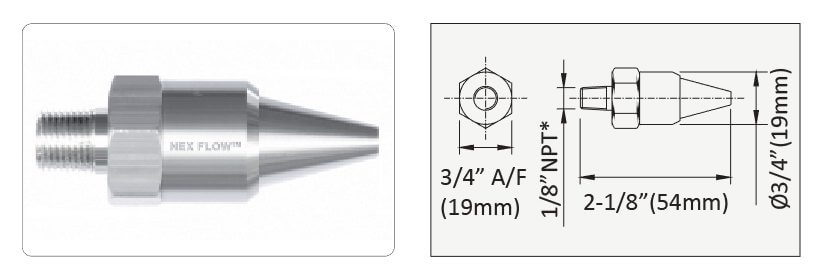

Model 47003 (anodized aluminium) Model 47003S (303/304 Stainless Steel) and Model 47003S-316L (316L Stainless Steel) Air Nozzles This is a common standard strength nozzle with a 1/8” male NPT connection and ideal for most blow-off applications involving liquids.

Sound level 77 dBA at 3ft (0.91mm) at 80 psig (5.6 bar).

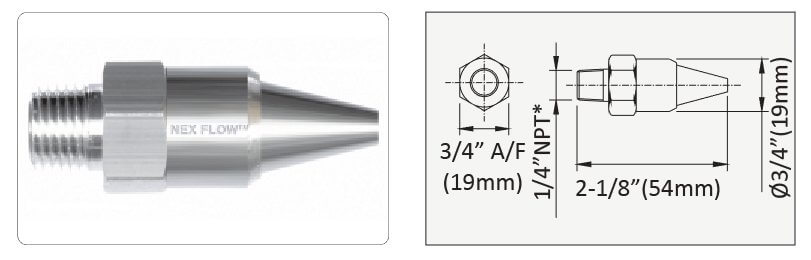

Model 47004 (anodized aluminium) Model 47004S (303/304 Stainless Steel) and Model 47004S-316L (316L Stainless Steel) Air Nozzles This strong force nozzles with a 1/4” male NPT connection and ideal for most blow-off applications involving liquids and even light weight parts.

Sound level 78 dBA at 3ft (0.91mm) at 80 psig (5.6 bar).

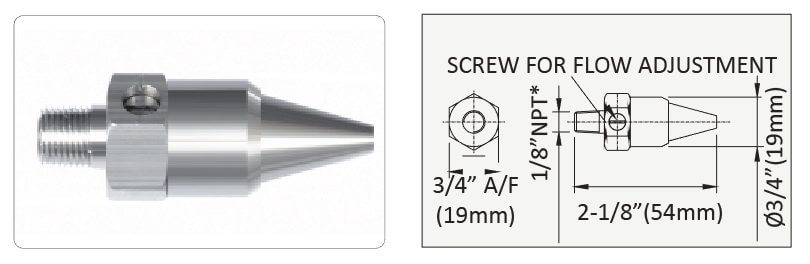

Model 47009 (anodized aluminium) Model 47009S (303/304 Stainless Steel) and Model 47009S-316L (316L Stainless Steel) Air Nozzles Is made adjustable. The superior design of the adjustable set screw is made to adjust the nozzles within its weakest and strongest ranges.

Sound level 77 dBA at 3ft (0.91mm) at 80 psig (5.6 bar).

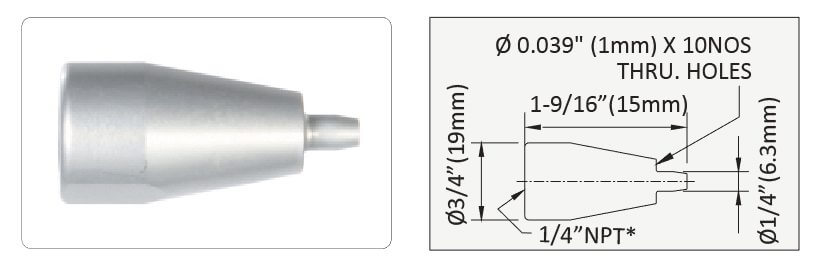

Model 47010Air Nozzle- is extremely powerful. It has a 1/4” female NPT fitting and is fully anodized for long life. With the ‘coanda’ profile you get an extremely strong force at a distance. This is an ideal Nozzle for blow guns and for blowing small parts for part ejection heavier viscosity liquids. The 47010 is a higher force Nozzle but has less distance for laminar flow than the 47004. Use the Model 47004 is greater distance required from the Nozzle.

Sound level 78 dBA at 3ft (0.91mm) at 80 psig (5.6 bar).

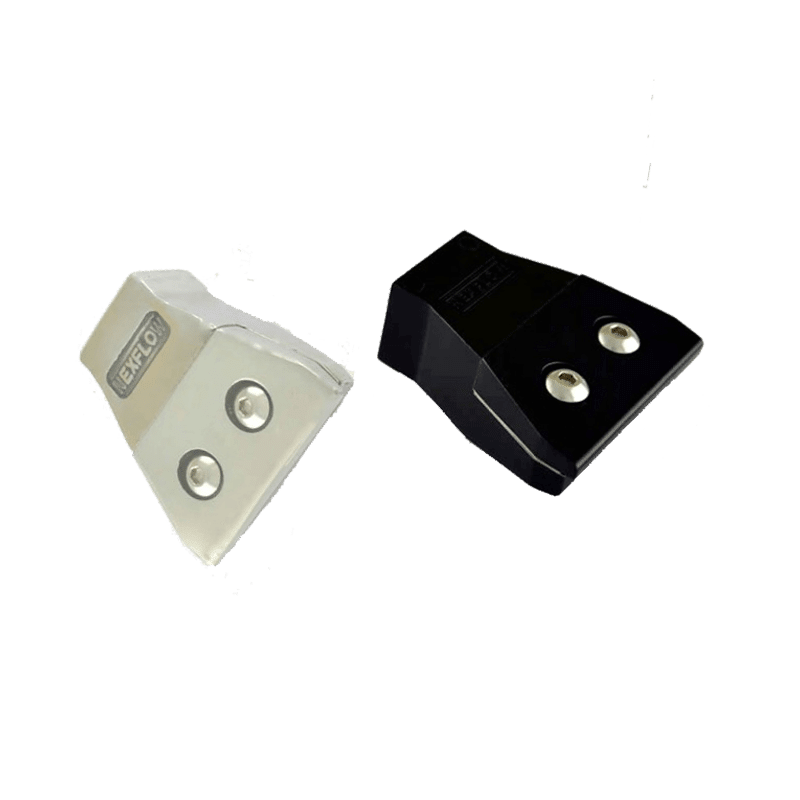

Model 47011 Air Edger Flat Jet is an extremely efficient flat jet air nozzle designed to provide a powerful stream of high velocity laminar flow and high force for blow off and cooling where air knives may not be enough. Available in cast zinc and 316L stainless steel for high temperature and highly corrosive environments.

air mag nozzle

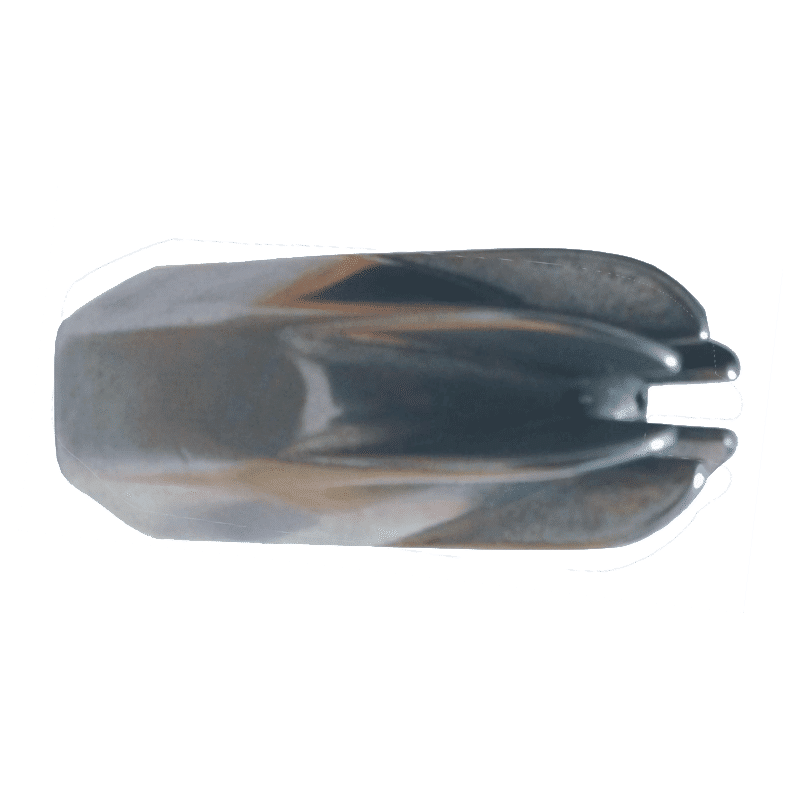

Model 47004AMF – is the first product of the The Nex Flow™ Air Mag™ “patent pending” star profile air amplifying nozzle and has the best force/air consumption ratio known.  Ideal when higher force required in blowoff applications.

Sound Level 74 dbA at 3 ft. (0,91m) at 80 psig (5.5 bar)

APPLICATIONS

  • Part cleaning
  • Chip removal
  • Part drying
  • Part ejection
  • Air assist

ADVANTAGES

  • Reduced compressed air cost
  • 10 dBA average noise reduction
  • Conserve compressed air
  • Compact
  • Improved safety
  • Meets OSHA noise level requirements
  • Improved production

VIDEOS

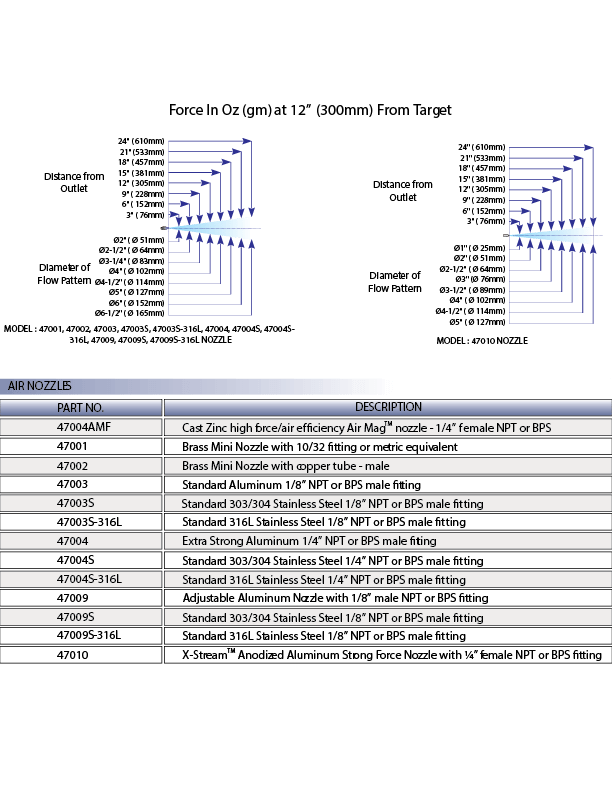

DIMENSIONS



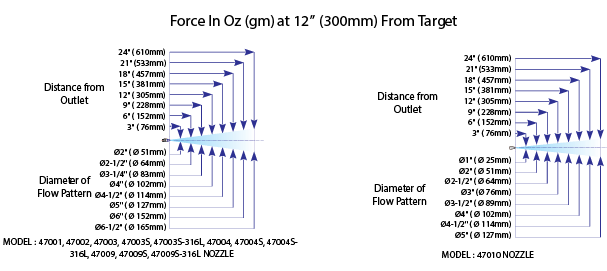

PERFORMANCE

Model
 Description
Air Consumption
@ 80 psig
Force in ounces
Force in Grams
47001
Brass Mini-Nozzle with 10/32 fitting or metric equivalent
6.0 5.0 142
47002
Brass Mini-Nozzle with copper tube – male
6.0 5.0 142
47003 (aluminium) 47003S (303/304 stainless)
47003S-316L (316L stainless)
Standard aluminium 1/8″ NPT male fitting
11.2 8.0 227
47004 (aluminium) 47004S (303/304 stainless)
47004S-316L (316L stainless)
Extra Strong aluminium 1/4″ NPT male fitting
24.0 21.0 596
47009 (aluminium) 47009S (303/304 Stainless Steel) and Model 47009S-316L (316L stainless)
Adjustable aluminium nozzle with 1/8″ male NPT fitting – can be
Maximum 24.0 Maximum 23.0 653

set to minimum and maximum with set screw
Minimum 13.0 Minimum 13.0 369
47010
X-stream Strong Force nozzle with 1/4″ female NPT fitting
21.2 24.5 695
47004AMF Click Here for More Details
Air Mag™ Nozzle with 1/4″ female NPT fitting
15.5 15.0 425
47011-4  Click Here for More Details
 Air Edger™ Flat Jet with .004 gap setting
20.5 12 340
