Air Amplifiers

Nex Flow Air Amplifiers

PRODUCT OVERVIEW

Nex Flow™ Air amplifiers are a simple, inexpensive devices with virtually no maintenance that can convey fumes, smoke, lightweight materials and move a high volume of air for cooling, blowoff and drying applications. They use the “coanda effect” which entrains a large amount of surrounding air using only a small amount of compressed air. The effect is an amplification of up to 17 times the airflow or more (depending on the size) with reduced noise levels.

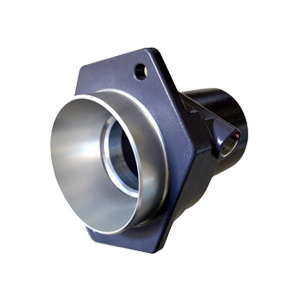

Standard (Fixed) Air Amplifiers

The Fixed Air Amplifier is zinc die cast Standard Air Amplfiers from Nex Flow™ are solid and perform as well or better than patented designs when used in similar applications. The gap can be adjusted by adding shims, five sizes are available. It is easy to mount and maintain reducing both compressed air consumption and noise levels. It is quiet, can amplify flows up to 16 times their input air consumption rate.

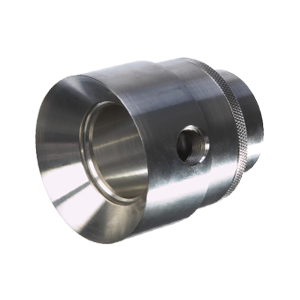

Adjustable Air Amplifiers

The adjustable Air Amplifier is anodized aluminum or Stainless Steel for high temperature or food applications. The customer can set the gap and lock it in place using a lock ring. They are used for a variety of applications. Adjustable Air Amplifiers take energy from a small volume of compressed air to produce high velocity, high volume, low pressure output airflow. It is quiet, efficient and can amplify flows up to 17 times the input air consumption rate.

APPLICATIONS

  • Vent welding smoke
  • Cool hot parts
  • Dry wet parts
  • Clean machined parts
  • Distribute heat in molds/ovens
  • Ventilate confined areas
  • Dust collection
  • Exhaust tank fumes

ADVANTAGES

  • Compact, lightweight, portable
  • No electricity
  • No moving parts – no maintenace
  • Ends are easily ducted
  • Instant on/off

VIDEOS

+ Overview

PRODUCT OVERVIEW

Nex Flow™ Air amplifiers are a simple, inexpensive devices with virtually no maintenance that can convey fumes, smoke, lightweight materials and move a high volume of air for cooling, blowoff and drying applications. They use the “coanda effect” which entrains a large amount of surrounding air using only a small amount of compressed air. The effect is an amplification of up to 17 times the airflow or more (depending on the size) with reduced noise levels.

Standard (Fixed) Air Amplifiers

The Fixed Air Amplifier is zinc die cast Standard Air Amplfiers from Nex Flow™ are solid and perform as well or better than patented designs when used in similar applications. The gap can be adjusted by adding shims, five sizes are available. It is easy to mount and maintain reducing both compressed air consumption and noise levels. It is quiet, can amplify flows up to 16 times their input air consumption rate.

Adjustable Air Amplifiers

The adjustable Air Amplifier is anodized aluminum or Stainless Steel for high temperature or food applications. The customer can set the gap and lock it in place using a lock ring. They are used for a variety of applications. Adjustable Air Amplifiers take energy from a small volume of compressed air to produce high velocity, high volume, low pressure output airflow. It is quiet, efficient and can amplify flows up to 17 times the input air consumption rate.

+ Features

APPLICATIONS

  • Vent welding smoke
  • Cool hot parts
  • Dry wet parts
  • Clean machined parts
  • Distribute heat in molds/ovens
  • Ventilate confined areas
  • Dust collection
  • Exhaust tank fumes

ADVANTAGES

  • Compact, lightweight, portable
  • No electricity
  • No moving parts – no maintenace
  • Ends are easily ducted
  • Instant on/off
