Ring Vac™ Air Operated Conveyors

Pneumatic conveyors

PRODUCT OVERVIEW

The Nex Flow Ring Vac Air Conveyor is available in both ANODIZED Aluminum, Heavy Duty HARD Anodized or ALL STAINLESS STEEL. Simply clamp a standard hose size to each end of the Ring-Vac™ to create this high energy conveying system. No moving parts for maintenance free operation with capacity and flow controlled with a pressure regulator.

Known as Hopper Loaders or Venturi Loaders, originally designed to eliminate manual bending and lifting. Conveying rate depends on density of material ( Lbs / cubic foot ), horizontal run, vertical lift. These vacuum conveyors provide a simple, low cost solution compared to other pneumatic conveying systems

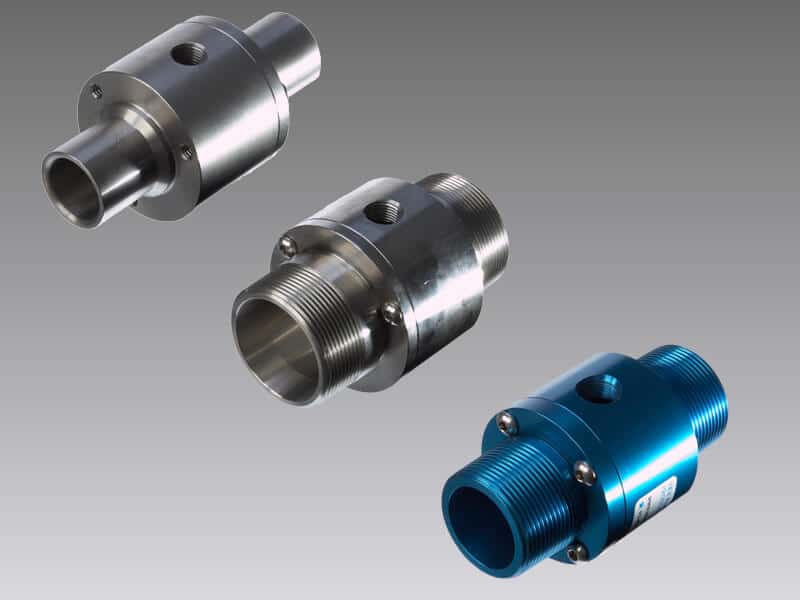

STANDARD ALUMINUM / STAINLESS STEEL RING VAC™

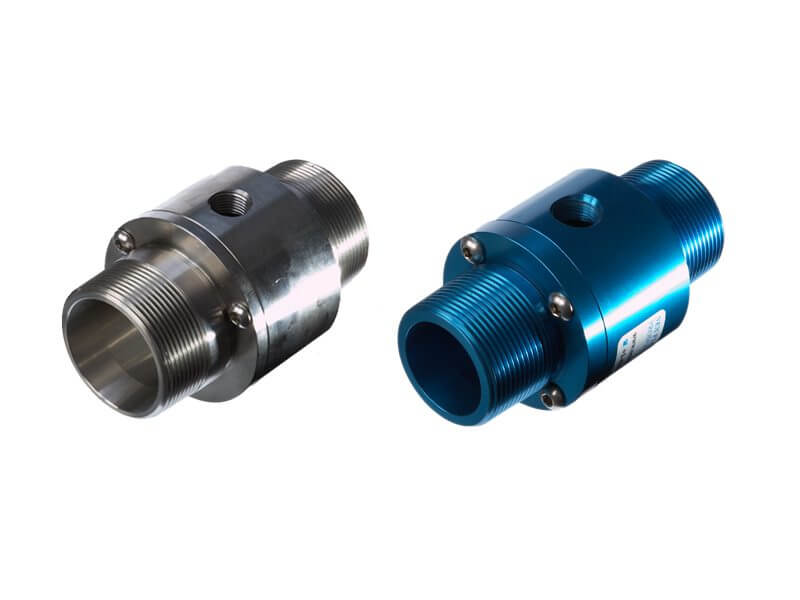

Available in standard and threaded versions for regular and high temperature applications on both 303/304 Stainless Steel or 316L Stainless Steel.
Pneumatic Conveyors – Ring-Vac™ Pneumatic Conveying System has virtually no moving parts, conveys material at high rates and over long distances. It utilizes compressed air for a powerful, efficient venturi action along its length in a compact design for high capacity conveying over large distances.

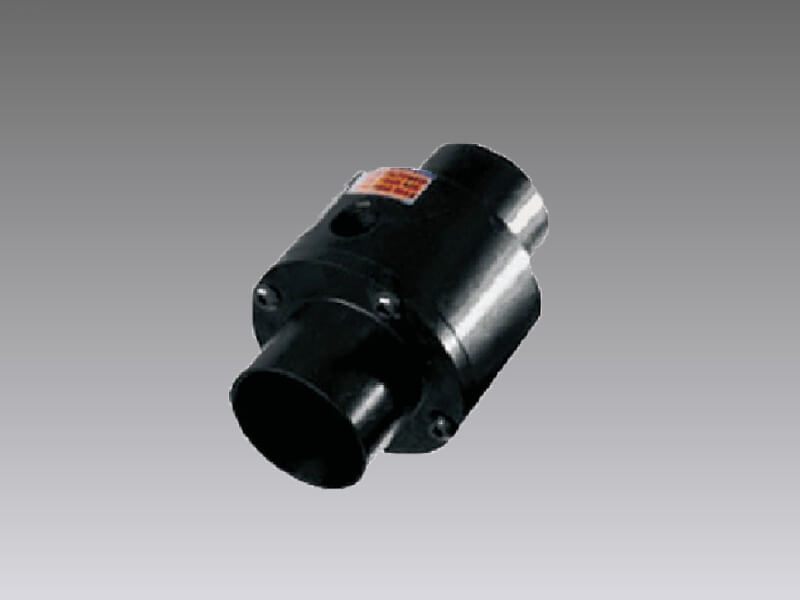

Heavy Duty X-STREAM Ring Vac™

X-Stream™ Air Conveyors – Ring-Vac™ Heavy Duty Pneumatic Conveying System: Available in standard and threaded versions for heavy duty applications. Designed for conveying materials over a longer distance both vertically and horizontally. Made of hardened anodized aluminum it helps prevent premature wear that could occur either an ordinary anodized aluminum or Stainless Steel Ring-Vac™.

Supreme X-Stream™ Non-clogging Pneumatic Conveyor

The X-stream™ Supreme Pneumatic Conveying System (XSPC) has virtually no moving parts, conveys material at high rates and over long distances. Intrinsic straight through design prevents clogging. It utilizes compressed air for a powerful, efficient venturi action along its length in a compact design for high capacity conveying over large distances.

APPLICATIONS

  • Hopper loading
  • Fiber tensioning
  • Material conveying
  • Waste/trim removal
  • Chip removal
  • Part transfer
  • Filling operations

ADVANTAGES

  • Compact
  • Quiet
  • No moving parts
  • Fits standard hose or tube
  • Aluminum or stainless steel
  • High throughput capabality

VIDEOS

How it Works

Ring-Vac™ compressed air conveying system – Compressed air enters at point (A) into a annular plenum chamber and injected into the throat of the unit though directed nozzles. These jets of compressed air create a vacuum at the inlet (C) which draws in material and accelerates it through the unit and out at (D) conveying the material over a great vertical or horizontal distance.

PERFORMANCE

MODEL Size Outside Diameter inches (mm) Air Consumption SCFM at 80 PSIG (SLDP at 5.5 BAR) Vacuum inches H2O (KPG)
30000/30000S/30000HTS/ 30000S-316L/30000HTS-316L 3/4″ (19mm) 11 (303) -72 (-18)
30001/30001S/30001T/30001TS/ 30001HTS/30001THTS/ 30001S-316L/30001HST-316L 1″ (25mm) 15 (415) -42 (-11)
30002/30002S/30002T/30002TS/ 30002SHTS/30002HTS/ 30002S-316L/30002HTS-316L 1 1/4 ” (32mm) 26 (730) -42 (-11)
30003TS/30003THTS/30003THTS/ 30003THTS/30003S-316L/ 30003HTS-316L 1-1/2″ (38mm) 33 (932) -39 (-9)
30004/30004S/30004T/30004TS/ 30004THTS/30004HTS/ 30004S-316L/30004HTS-316L 2″ (51mm) 45 (1270) -28 (-7)
30005/30005S/30005HTS 2 1/2″ (63.5mm) 58.5 (1655) -23.5 (-6)
30006/30006S/30006HTS/30006TS/ 30006THTS 3″ (76mm) 69 (1940) -14.7 (-4)

DIMENSIONS

The Ring-Vac™ Pneumatic Conveying Systems are available in coated Aluminium, stainless steel and in high temperature stainless steel for high temperature applications. Note: All our stainless steel high temperature Ring-Vac units are rated to 1200ºF (649ºC)

Special materials can be utilized for unique applications. If greater conveying force is required the conveying “generator” can be machined for higher capacities.

Outside Diameter
(Dimension “A” Hose Diameter)
Model Number Material of Construction
3/4″ 30000 Aluminium
1″ 30001 Aluminium
1-1/4″ 30002 Aluminium
1-1/2″ 30003 Aluminium
2″ 30004 Aluminium
2 1/2″ 30005 Aluminium
3″ 30006 Aluminium
3/4″ 30000S Stainless Steel
 1″ 30001S Stainless Steel
1″ 30001HTS High Temp Stainless Steel
1-1/4″ 30002S Stainless Steel
1-1/4″ 30002SHTS High Temperature Stainless Steel
1-1/2″ 30003S Stainless Steel
1-1/2″ 30003SHTS High Temperature Stainless Steel
2″ 30004S Stainless Steel
2 1/2″ 30005S Stainless Steel
2″ 30004SHTS High Temperature Stainless Steel
3″ 30006S Stainless Steel
1″ NPT 30001T (Threaded) Aluminium
1-1/4″ NPT 30002T (Threaded) Aluminium
1-1/2″ NPT 30003T (Threaded) Aluminium
2″ NPT 30004T (Threaded) Aluminium
1″ NPT 30001TS (Threaded) Stainless Steel
1″ NPT 30001THTS High Temperature Stainless Steel
1-1/4″ NPT 30002TS (Threaded) Stainless Steel
1-1/4″ NPT 30002THTS High Temperature Stainless Steel
1-1/2″ NPT 30003TS (Threaded) Stainless Steel
1-1/2″ NPT 30003THTS (Threaded) High Temperature Stainless Steel
2″ NPT 30004TS (Threaded) Stainless Steel
2″ NPT 30004THTS High Temperature Stainless Steel
3″ 30006TS (Threaded) Stainless Steel
3/4″ 30000HTS High Temperature Stainless Steel
2-1/2″ 30005HTS High Temperature Stainless Steel
3″ 30006HTS High Temperature Stainless Steel
3″ 30006THTS High Temperature Stainless Steel
3/4″ 30000S-316L 316L Stainless Steel
1″ 30001S-316L 316L Stainless Steel
1 1/4″ 30002S-316L 316L Stainless Steel
1 1/2″ 30003S-316L 316L Stainless Steel
2″ 30004S-316L 316L Stainless Steel
3/4″ 30000HTS-316L 316L High Temperature Stainless Steel
1″ 30001HTS-316L 316L High Temperature Stainless Steel
1 1/4″ 30002HTS-316L 316L High Temperature Stainless Steel
1 1/2″ 30003HTS-316L 316L High Temperature Stainless Steel
2″ 30004HTS-316L 316L High Temperature Stainless Steel

NPT Adaptors Available Upon Request

** STAINLESS STEEL IS 303/304 STAINLESS UNLESS OTHERWIDE INDICATED
